SetParentTransformer

Creates or updates the parent distribution transformer that the service point is connected to. In Itron Analytics, use the Distribution Equipment Hierarchy (DEH) import to define this element instead of MDI.

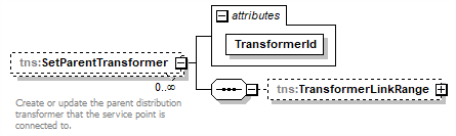

Diagram

Properties

  • isRef: 0
  • minOcc: 0
  • maxOcc: unbounded
  • content: complex

Use

Collection Manager

Not used

Performance Manager

Not used

Itron Analytics

Not used

ChoiceConnect Fixed Network

Optional

Children

TransformerLinkRange

Attributes

TransformerId. String. Required
